Full Automatic Hot-dip Galvanized Poultry Farm Feeding Equipment Customizable for Broiler Chicken Houses

Name: Full Automatic Hotdip Galvanized Poultry Farm Feeding Equipment Customizable for Broiler Chicken Houses
Brand: KXD-SSW1059
Price: 50.00 USD

Buy cheap Full Automatic Hot-dip Galvanized Poultry Farm Feeding Equipment Customizable for Broiler Chicken Houses product

Sustainability : Eco-friendly

Design Style : Modern/Contemporary

Standard Span : 12-30m

Product Model : CB

Dimensions : Customizable

Installationtime : 1-2 Weeks

Parapet Wall : As Requested

Structural Frame : Steel Column, Steel Beam, Steel Truss

Brand Name : KXD-SSW1059

Payment Terms : T/T

Supply Ability : 5000ton/Month

Model Number : KXD-SSW1059

Main Frame Material : Q345b Galvanized Steel

Cost : Affordable

Connection Form : Bolt Connection

Place of Origin : Place of Origin Qingdao

Surface Treatment : Galvanizing, Painting

Application : Construction

MOQ : 200 Square Meters (MOQ)

Delivery Time : 30days

Production Capacity : 50000 Square Meter Per Month

Exterior Finishes : Customizable

Certification : ISO, SGS, CE, BV

Packaging Details : pallet

Cell Capacity : 8 hens per cell

Price : US$50.00-100.00

Contact Now

Full Automatic Chicken House Poultry Farm Feeding Equipment for Broiler

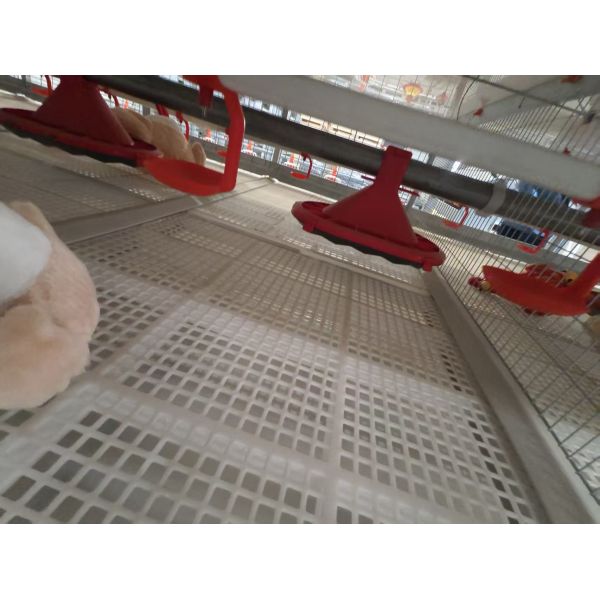

This full automatic pan feeding system is specially designed for ground-raised broiler chicken houses, consisting of feed silo, main conveying auger pipe, distribution hoppers, adjustable feeding pans and intelligent level sensors. The whole line realizes unmanned automatic feed transportation and distribution: feed is delivered from the outdoor silo to every feeding pan evenly under motor drive, and built-in sensors automatically start or stop the machine to keep stable feed volume without manual feeding.

The height of each feeding pan can be freely adjusted to match chicks and grown broilers at different growth stages, while multi-gear feed output control effectively cuts feed spillage and waste, guaranteeing every broiler gets equal feed intake for uniform weight gain.

All metal pipelines and supports adopt hot-dip galvanized anti-rust treatment, and feeding pans are made of food-grade anti-aging PP plastic, extending service life over 15 years with low maintenance cost. One set of feeding equipment can cover large broiler houses with thousands of birds, slashing labor demand by over 70% and greatly lowering farm operating expenses.

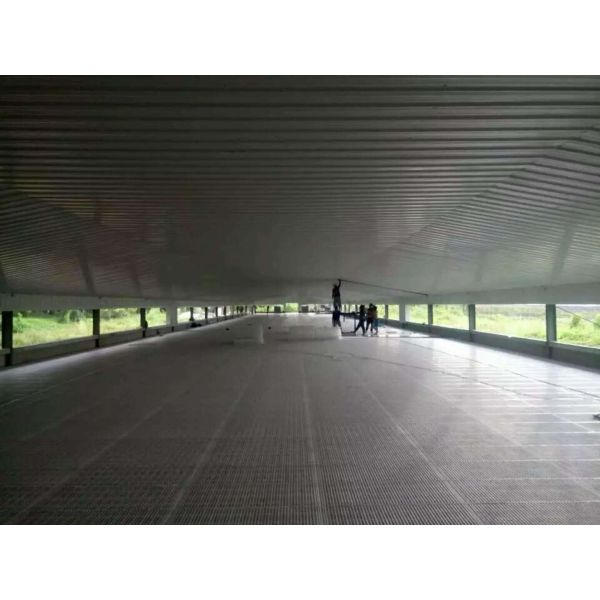

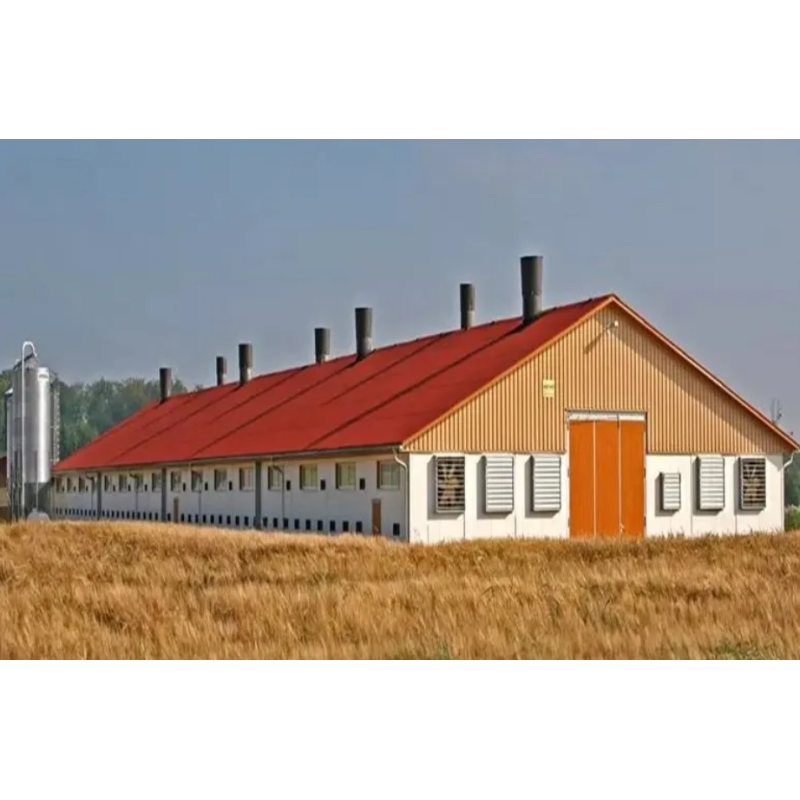

Matched perfectly with our prefabricated steel broiler chicken houses, this feeding line fits closed, semi-closed and open poultry sheds, supporting customized layout for medium and large commercial broiler farms. We provide full one-stop matching solutions including feeding, drinking, ventilation and cooling systems to improve overall breeding efficiency.

Competitive Service for Chicken House Poultry Farm Equipment

Chicken Farm Equipment: produce and supply first-class quality poultry equipment with good price
Poultry House: select location, design and construction preparation guidance

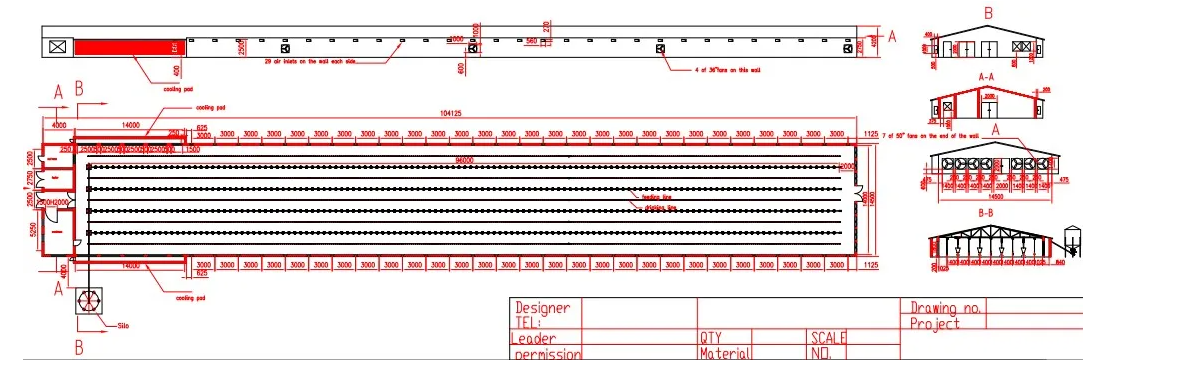

Layout Drawing: make layout drawing of our equipment to guide you build house and install equipment
Poultry Feeding Equipment Installation: We send our engineer to your farm for guide of equipment installation
Training: we can train your workers to operate poultry equipment and raise poultry
After-sales service: free consultancy and prompt reply to questions from clients

Full Automatic Hot-dip Galvanized Poultry Farm Feeding Equipment Customizable for Broiler Chicken Houses

Equipment Components Overview

Item	Description	Item	Description
01	Main Feed Line (Feed Storage)	06	Environment Control System
02	Automatic Pan Feeding Line	07	Heating System (Optional)
03	Automatic Nipple Drinking Line	08	Fogger Spraying and Disinfection System (Optional)
04	Ventilation System	09	Curtain for Two Side Walls (Optional)
05	Cooling Pad System	10	Plastic Slat Floor (Optional)

Detailed System Specifications

1. Main Feeding Line System

By this system, poultry farm chicken feed can be conveyed from the silo or manpower hopper into each feeding line in your chicken farm.

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line which controls motor on and off to achieve automatic feed delivery.

Feeding capacity: 1400KG/h, Maximum feeding length: 60m. Radius of bending pipe: R1500 (inclinable angle: 30 degrees).

Main feed line auger: import from South Africa. Feed level sensor: import from Germany IFM

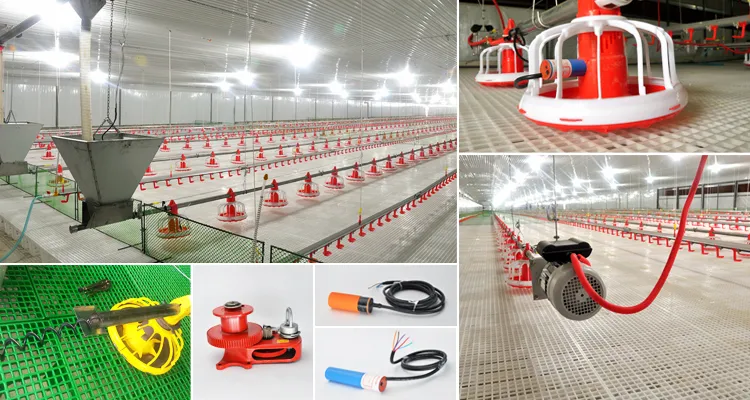

2. Pan Feeding Line System

Convey feed from vice hopper into each feed pan automatically.

Taiwan Brand driving motor; Hot-dip galvanized vice hopper; Pan feeding line with South Africa Spring Auger and Germany Sensor; Suspension and lifting system convenient to adjust the feeding line height by winch.

3. Nipple Drinking Line System

This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.

Bigdutchman/Plasson/Lubing type drinker for choice. Water front system; Water pipe with nipple drinker and drip cup; Pressure regulator and water-level display.

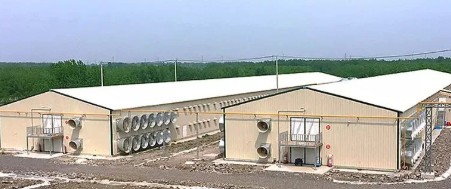

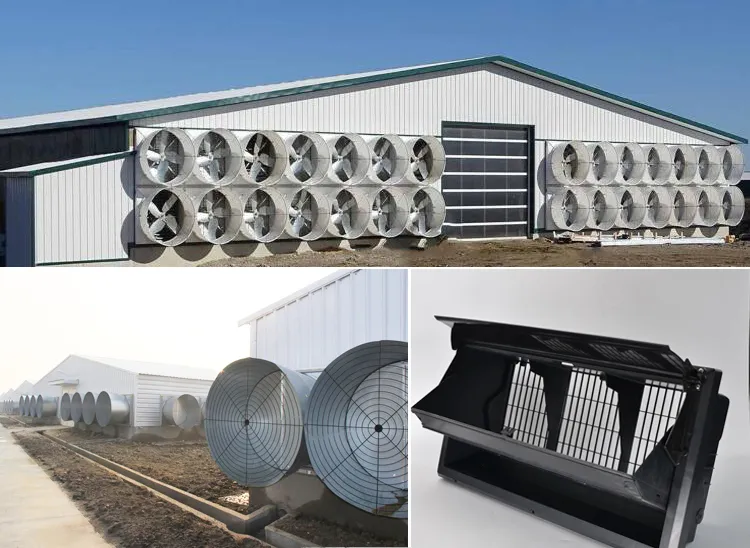

4. Ventilation System

This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.

1) Air Inlet - High quality engineering material ABS production, high strength, strong anti-aging, can be directly cleaned with high pressure cleaner.

2) Ventilation Fan - 24'' and 36'' fans are used for ventilation to provide fresh air to the poultry house. 50'' fans equipped with cooling pads to cool the house. Box fan, Cone fan, Fiberglass cone fan for your choice.

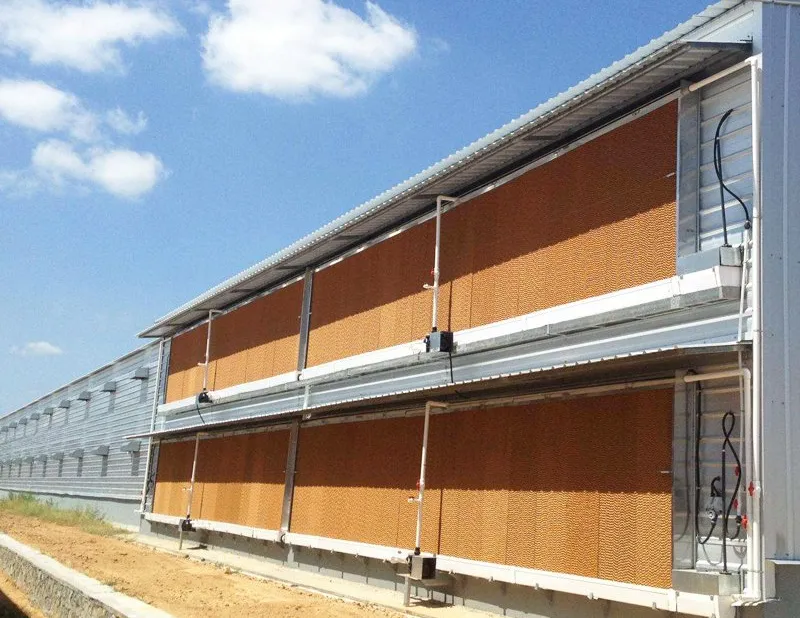

5. Cooling Pad System

Cooling pad and fan, the longitudinal ventilation and cooling combination is the most economic and effective summer cooling system for poultry house.

Color: black, yellow, green, red, etc; Thickness: 100mm, 150mm; Height: 1660mm, 1960mm, 2160mm (with frame); 1500mm, 1800mm, 2000mm (without frame)

Frame: Aluminium frame high strength, good corrosion resistance, even water distribution, compact structure, beautiful and practical. Galvanized steel frame for your option, lower price than aluminium frame.

6. Automatic Climate Control System

This system saves labors and resources under the condition of assuring a optimum growth environment for poultry chickens. Environment controller along with temperature is imported from Agrologic in Israel, which can set an optimum working mode according to the local climate and raising environment.

The Most Advanced Control System not only has the above function, but also could be done to do chicken feed weighing/chicks weighing/connecting to computer or personal phone.

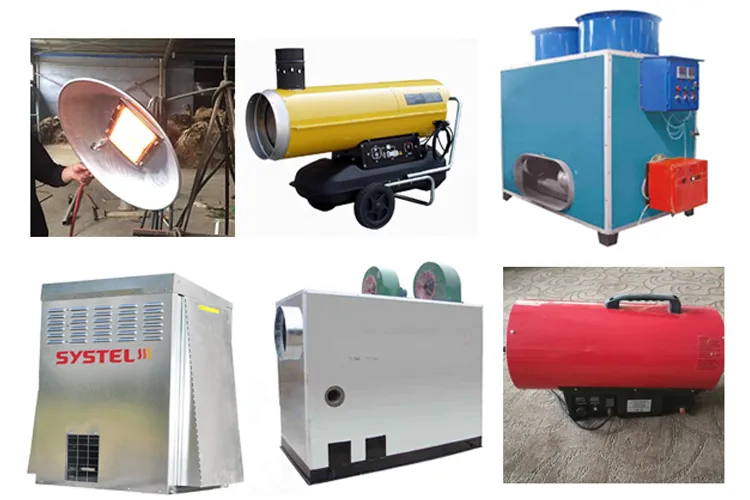

7. Heating System (Heater)

Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage. Poultry gas space heater, diesel tank heater, infrared gas brooder and hot-blast heater for your choice.
