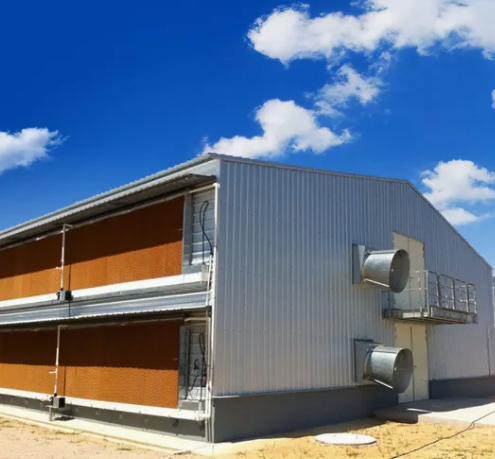

Commercial Broiler Ground/Slat Floor Rearing Equipment with Feeding & Drinking Line & Climate Control
Broiler rearing equipment covers ground litter raising and slatted floor raising two mainstream styles. It is specially designed for full-cycle commercial broiler breeding from chicks to market weight.
Complete supporting configurations include automatic feeding line, nipple drinking system and intelligent climate control unit. The integrated set effectively saves labor input and improves chicken survival rate.
Technical Specifications

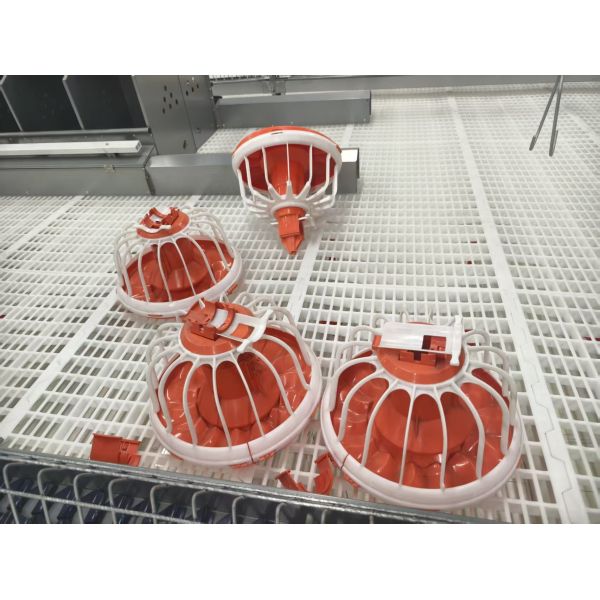

Broiler pan feeding line consists of drive motor, poultry feed pan, galvanized feed pipe, flexible feeding auger and suspension assembly as core components. All critical motors are high-stability certified to guarantee continuous, automatic and smooth operation of the entire feeding system.
Our flexible augers are sourced from globally renowned supplier Technical System. The multi-stage adjustable feed pans support broiler feeding from day-old chicks through finishing stage, featuring large loading capacity to serve more chickens. Optimized overall layout helps customers achieve favorable feed conversion ratio (FCR) and lower feeding cost.
| Feed Fill System |
75mm |
90mm |
| Max Delivery Length |
60m |
40m |
| Gear Motor |
1.1HP/1.5HP,50/60HZ, 1 PHASE/3 PHASES |
1.1HP/1.5HP,50/60HZ, 1 PHASE/3 PHASES |
| Delivery Capacity |
1400KGS/H |
2500KGS/H |
Fans
Door System
- Special selects panel material for better insulation in different climate conditions
- Modular panel design allows maximum flexibility in door size to match house sidewall openings
- Better mixing the fresh cold air and hot air prevent the chicken flock away from the cold stress
- No more dead zone at side and end walls
- Better guide the air flow to the center of the roof
- Automatic controlled the opening size by the controller in different bird age

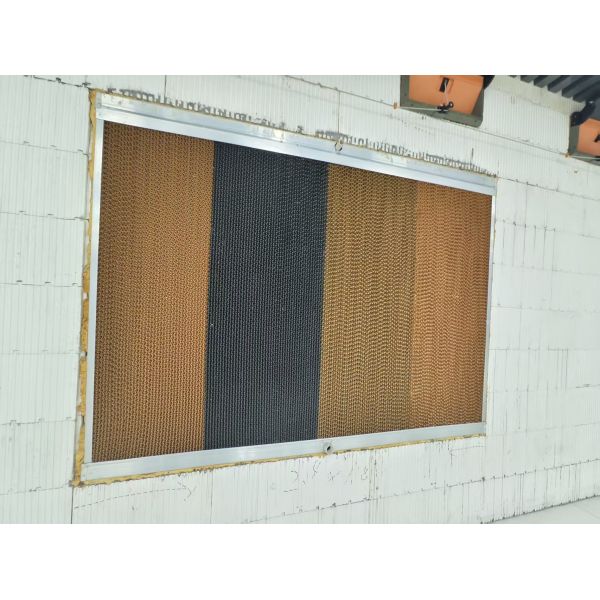

Evaporative Cooling System
Controller & Control Panel
The ventilation control system consists of computerized controller, temperature sensors, humidity sensors, negative pressure sensor and alarm system. By means of the sensors and preset temperatures, humidity, and negative pressure, the controller can regulate temperatures, moisture, wind speed and negative pressure in the house.
Why Choose Us?
- Exceptional Durability: Our high-tensile steel frames are resistant to termites, fire, and corrosion.
- Rapid Deployment: Modular design allows for 30-50% faster installation.
- Custom Engineering: Tailored CAD/Tekla designs to optimize material usage.
- Eco-Friendly: Over 90% of materials are fully recyclable.
Primary Applications
- Industrial: Logistics warehouses and manufacturing plants.
- Commercial: Shopping malls and automobile showrooms.
- Agricultural: Large-span poultry houses and grain storage.
Frequently Asked Questions (FAQ)
What is a broiler floor rearing system?
It's a poultry farming method where broilers are raised directly on litter-covered floors (e.g., rice husks or wood shavings), slats, plastic nets, without cages, supported by automated feeding, drinking and climate control systems.
How many broilers can be raised in one house?
This depends on the house size, broiler harvest weight & management. Commonly we calculate with:
≤2kg, maximum density: 32kg/square meter
2-2.5kg, maximum density: 37kg/square meter
≥2.5kg, maximum density: 42kg/square meter
What are the advantages of floor rearing systems?
- Improved animal welfare and reduced stress
- Ideal for fast-growing broiler breeds
- Easier management and system maintenance
- Supports automation, reducing labor costs
