Customized Corrosion Resistant Poultry Farm Ventilation System with Hot-Dip Galvanized Steel and Easy Assembly

Model Number : KXD-SS78

Supply Ability : 10000 Houses/Year

Durability : Corrosion Resistant

Wall And Roof : Steel cladding sheet,Sandwich Panel

Price : USD 20,000.00-100,000.00

Surface Treatment : Galvanizing, Painting

Delivery Time : 25 days

Usage : Poultry Farming

Raw Steel Material : Q235B, Q355b, ASTM A36

MOQ : 1 set

Packaging Details : steel pallet

Installation : Easy Assembly

Connection Form : Bolt Connection

Place of Origin : Qingdao，China

Certification : CE、ISO、SGS

Brand Name : KXD

Contact Now

Customized Feeding And Drinking Water Line Ventilation System Equipment For Poultry Farm

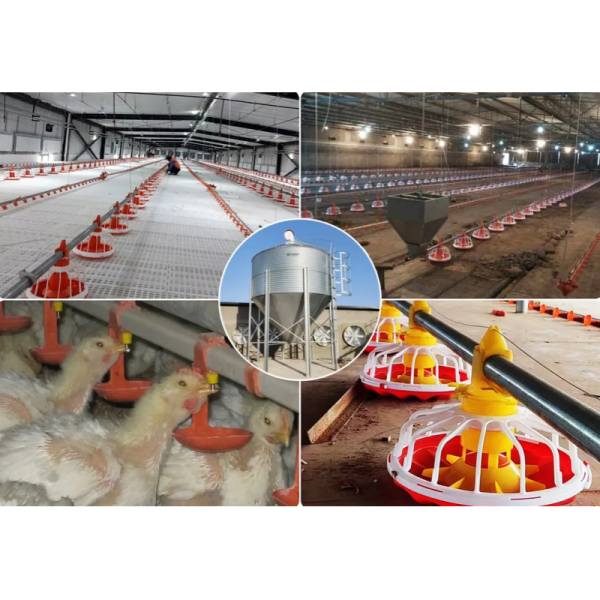

Automatic Main Feeding Line for Silo & Manual Hopper System

The automatic main feeding system is assembled with silo or manual feeding hopper, driving unit, auger conveyor and feed level sensor. The enclosed chicken house design elevates management efficiency, reduces cross infection rate and enables full automatic operation of chicken farms.

Silo Construction	Consists of silo body, top cover, upper flange, upper cone, supporting legs and access ladder. Steel materials sourced from Shougang Group with hot-dip galvanizing weight of 275 g/m².
Auxiliary Hopper	Standard capacities (feed density: 0.7): 70 kg, 90 kg, 130 kg, 150 kg, 200 kg. Custom specifications available.
Driving Motor	Power: 1.1 kW / 1.5 kW \| Voltage: 380 V / 220 V \| Customizable: 3-phase / single-phase \| Frequency: 50 Hz / 60 Hz
Feed Level Sensors	Two imported options: German IFM feed level sensor (2-wire) and Israeli Agrologic feed level sensor (3-wire)
Helical Spring Auger	Size: φ75 / φ90 \| Origin: South Africa \| Feeding capacity: 1400 kg/h ~ 2000 kg/h

Customized Corrosion Resistant Poultry Farm Ventilation System with Hot-Dip Galvanized Steel and Easy Assembly

Automatic Pan Feeding Line System

Feed Pan	Material: PP (Polypropylene) \| Grille options: 4 / 6 / 14 / 16 grids \| Pan bottom diameter: 330 mm – 380 mm \| Net weight: 560 g ~ 800 g per unit
Auxiliary Hopper	Standard capacities: 70 kg, 90 kg, 130 kg, 150 kg, 200 kg. Multiple standard sizes available; custom sizes can be produced.
Drive Motor	Power: 0.75 kW / 1.1 kW / 1.5 kW \| Voltage: 380 V / 220 V \| Customizable: 3-phase / single-phase \| Frequency: 50 Hz / 60 Hz
Galvanized Feed Pipe	Pipe diameter: Φ45 mm \| Material: Hot-dip galvanized steel pipe (zinc coating ≥ 275 g/m²) \| Hole specification: 3-hole / 4-hole \| Single pipe length: 3.06 m
Helical Spring Auger	Spec: Φ45 \| Origin: South Africa \| Feeding capacity: 450 kg/h – 1000 kg/h
Feed Level Sensor	Imported German IFM sensor
Height Adjustment System	Equipped with winch for easy height adjustment \| Load bearing capacity: 3,500 lbs

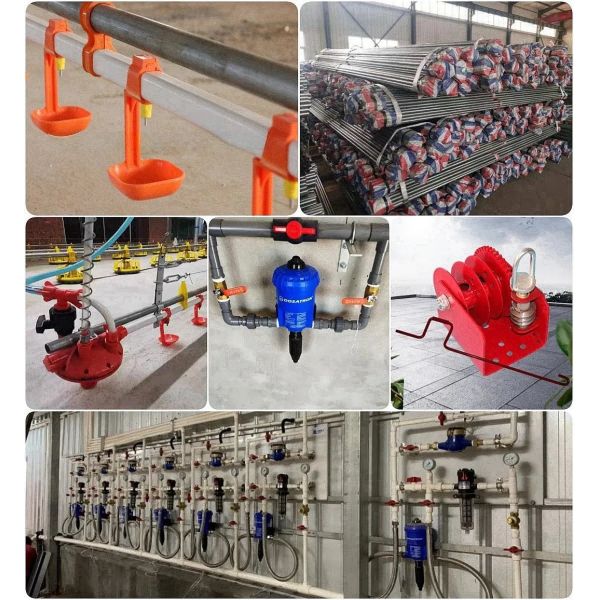

Automatic Nipple Drinking Line System

Nipple Design: Housing from high-grade engineering plastic with corrosion-resistant stainless steel valve stem. Supports 360° rotation. Double-layer sealing structure prevents water leakage and humidity fluctuations.
Waterline Support: Hot-dip galvanized rust prevention (275 g/m² zinc coating). Weld-free connection simplifies installation, maintenance and disinfection.
Waterline Front Assembly: Custom-designed for regular water supply and medication dosing. Equipped with large-diameter, high-pressure flushing pipeline to remove sediments and impurities.
Pressure Regulator: High-flow backpressure regulator with stable adjustment and high sensitivity. Backpressure knob boosts internal pressure up to 10x standard for pipeline self-cleaning.
Water Level Indicator: High-transparency flexible tubing with 304 stainless steel support spring. One-way air vent prevents water overflow.

Supplementary accessories: waterline end fitting, 1500-lb lifting winch for height adjustment and other complete auxiliary components.

Ventilation System

Controls poultry house environment, provides fresh air, proper humidity for chickens, and ensures maximum production from broilers.

Air Inlet

High quality ABS material production, high strength, strong anti-aging, can be directly cleaned with high pressure cleaner.

Ventilation Fan

36" fans for ventilation to provide fresh air. 50" fans equipped with cooling pads to cool the house. Options: Box fan, Cone fan, Fiberglass cone fan.

Our Advantages

Your enquiry will be answered within 24 hours
One-stop purchasing experience
Customizable design
Professional team provides most suitable farm solutions and shortest delivery time
Professional quality control system and after-sales service system
Service life of equipment: more than 10 years
