Steel Poultry House with Programmable Controller Exhaust Fan Solution and 50 Years Lifespan for Broiler Chicken Farm

Supply Ability : 5000ton/Month

Wall Type : Steel Panel

Water Filter : Yes

Model Number : KXD-SSW1059

Production Capacity : 30000ton/Year

Payment Terms : T/T

Life Time : Within 50 Years

Dimensions : Customizable

Interior Finishes : Customizable

Price : US$50.00-100.00

Floor Slope : 7°-9° incline

Energy Efficiency : High

Color : White

MOQ : 200 Square Meters (MOQ)

Delivery Time : 30days

Connection Form : Bolt Connection

Cell Size : 1206mm*770mm*640mm

Feature : Practical, Durable, Automatic

Certification : ISO, SGS, CE, BV

Cage Dimensions : 1.25m*1.0m*0.6m (length*width*height)

Place of Origin : Place of Origin Qingdao

Rooftype : Sloped Roof

Packaging Details : pallet

Installation Time : Short

Brand Name : KXD-SSW1059

Cell Capacity : 8 hens per cell

Contact Now

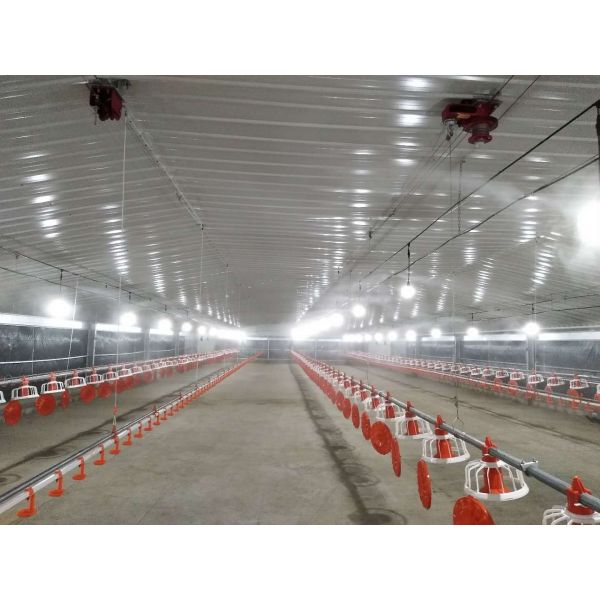

Meat Poultry Floor Rearing Setup with Programmable Controller and Exhaust Fan Solution for Poultry House
Broiler Pan Feeding Line

Our comprehensive feeding system includes the Drive Motor, Broiler Chicken Feeder, Feed Pipe, Flexible Feed Delivery Auger, Suspension system, and all necessary components. We select the most stable and high-quality drive motor to ensure the entire line operates automatically with stability and efficiency. The flexible auger is sourced from Technical System, a world-leading auger supplier.

The feeder is designed for use from day one through to removal, featuring maximum feed bearing capacity to support larger bird populations. The entire system is engineered to achieve optimal Feed Conversion Ratio (FCR) for customer chicken growth.

Steel Poultry House with Programmable Controller Exhaust Fan Solution and 50 Years Lifespan for Broiler Chicken Farm Steel Poultry House with Programmable Controller Exhaust Fan Solution and 50 Years Lifespan for Broiler Chicken Farm
Feed Storage and Fill System

This system includes feed silo, flexible feed delivery auger, PVC feed delivery pipe, drive motor, and all necessary components. Benefits include simplicity, high quality, and operational efficiency.

Feed Fill System Specification 75mm 90mm
Max Delivery Length 60m 40m
Gear Motor 1.1HP/1.5HP, 50/60HZ, 1 PHASE/3 PHASES 1.1HP/1.5HP, 50/60HZ, 1 PHASE/3 PHASES
Delivery Capacity 1400KGS/H 2500KGS/H
Climate Control System

Complete environmental management system including tunnel fans, air inlet, cooling pad, and tunnel door.

Tunnel Fans
Fan Model Static Pressure Air Flow Motor Specifications
54in Fiberglass Cone Fan 0 Pa / 0 In.H2O
12.5 Pa / 0.05 In.H2O
25 Pa / 0.1 In.H2O		 55000 M3/H / 32600 CFM
53100 M3/H / 31300 CFM
50800 M3/H / 29900 CFM		 220v-380v, 50/60 HZ, 1 or 3 Phases
50in Galvanized Cone Fan 0 Pa / 0 In.H2O
12.5 Pa / 0.05 In.H2O
25 Pa / 0.1 In.H2O		 49530 M3/H / 28465 CFM
40194 M3/H / 23100 CFM
37236 M3/H / 21400 CFM		 220v-380v, 50/60 HZ, 1 or 3 Phases
Air Inlet System
Curved Air Inlet (for tropical regions)
Static Pressure Air Flow Air Inlet Size
12 Pa / 0.05 In. H2O 4050 M3/H / 2383 CFM 1100*330 mm
25 Pa / 0.1 In. H2O 1980 M3/H / 1165 CFM 1100*330 mm
Tunnel Door System
  • Special panel material selection for optimal insulation across different climate conditions
  • Modular panel design provides maximum flexibility in door sizing to match house sidewall openings
  • Enhanced mixing of fresh cold air and hot air prevents cold stress in chicken flocks
  • Elimination of dead zones at side and end walls
  • Improved air flow guidance to the center of the roof
  • Automatic opening size control via controller based on different bird ages
Controller & Control Panel

The ventilation control system consists of computerized controller, temperature sensors, humidity sensors, negative pressure sensor, and comprehensive alarm system. Using sensor data and preset parameters for temperature, humidity, and negative pressure, the controller precisely regulates environmental conditions within the poultry house.

Our control panels utilize world-class electronic components from leading brands including Schneider, and ABB to ensure maximum safety and reliability for poultry farm operations.
